PCB Press Plates

Press plates for PCB presses


DUROX Press Plates are high quality anodized aluminum press plates used in presses for manufacturing of multilayer PCBs and laminates suitable for Lauffer, Bürkle, ADARA by Cedal Equipment® and others.
Thanks to our controlled manufacturing process and our broad experience we can supply press plates with very tight tolerances, low roughness, controlled anodized layer and no surface defects.


Specifically selected high quality 6XXX aluminum alloy

Heat treatment

Precipitation hardening heat treatment T6 for enhanced strength, hardness and durability


Controlled cold rolling to achieve strict dimensional requirements and defect free surface


High quality machine cutting, deburring and rounding of the aluminum sheets to produce custom press plate dimensions

Surface treatment

High thickness sulphuric hard anodizing on the whole press plate surface for high scratch resistance, improved durability and complete electric insulation

Quality inspection

Careful 100% quality inspection to ensure defect-free press plates

Technical specifications

  • Base material
    Cold rolled 6XXX-T6 aluminum sheets
  • Base material hardness
    > 90 HBS 10/500
  • Base material yield strength
    > 270 MPa
  • Surface treatment
    Sulphuric hard anodizing according to MIL-A-8625 Type III
  • Surface treatment thickness
    40-50 μm
  • Surface hardness
    > 450 HV0.05
  • Roughness
    < 1.00 Ra
  • Plate thickness
    1.25±0.10mm, 1.80±0.10mm
  • Side parallelism
    < 0.05mm
  • Rounded corners
    5mm radius
  • Electric insulation
    Complete electric insulation is ensured since the whole surface is anodized including borders
Press plate cross section

Get a quote

To obtain a quote for the supply of the press plates you need, contact us at info@pcb-pressplates.com.

In order to successfully process your request please provide the following information:

  • Press plate size
  • Press plate quantity
  • Delivery location
  • Any special request

We ship our press plates worldwide, packaged so as to ensure integrity right up to your delivery location.


DUROX srl, a company located in northern Italy, has been manufacturing separator press plates for ADARA presses for more than 25 years.


+39 0432 667185

Directional Center

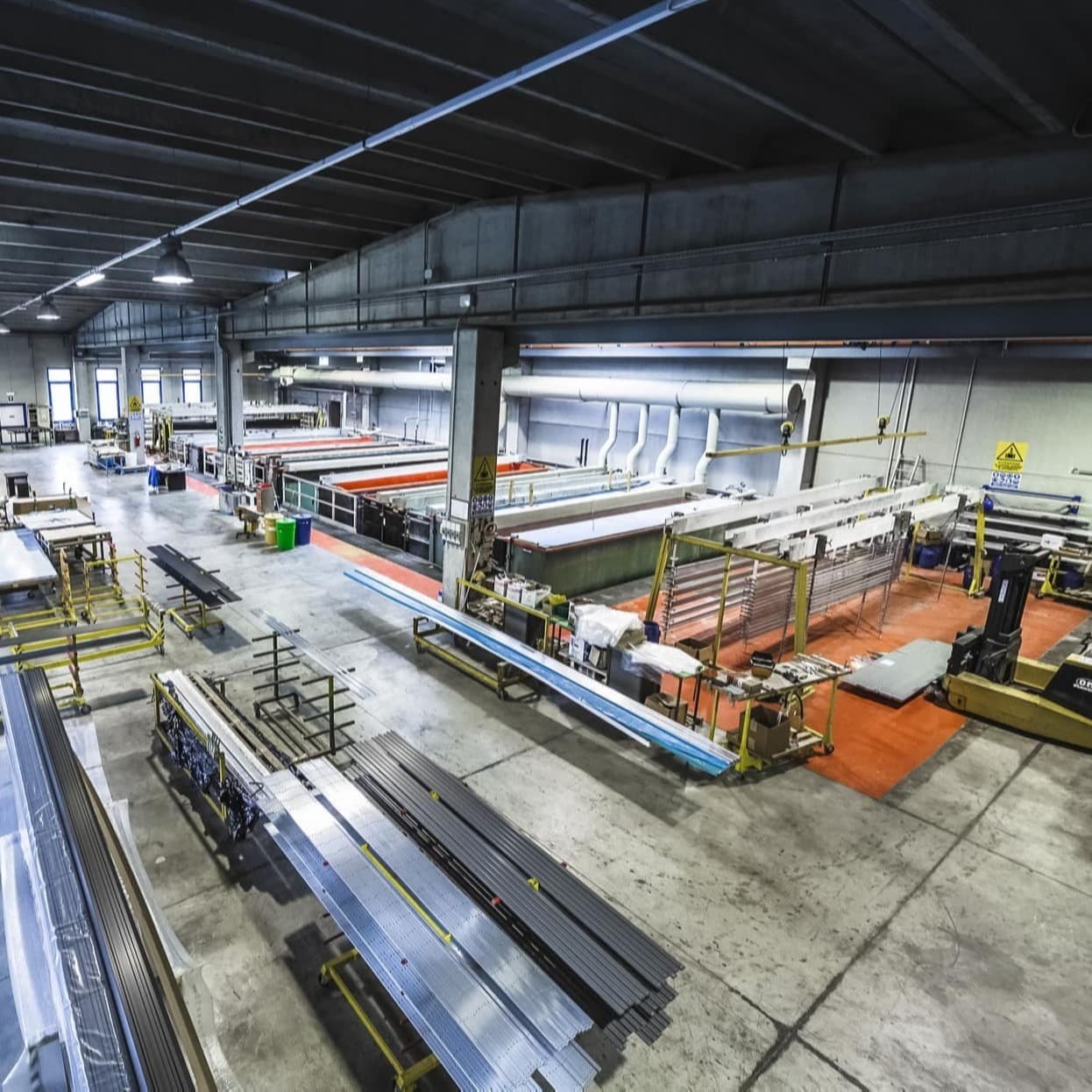

Anodizing department
